Description
FEATURES:
*High sensitivity
*With primary winding,easy to mount by soldering
TECHNICAL SPECIFICATIONS
| Part No. | Rated Current | Outline Sizes(mm) A B C D E | Output Voltage Vo(mv) | Test Conditions Iin(mA) RL (Ω) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| ZCT61-02 | 10A,15A | 32 | 20 | 25 | 15 | 6 | 1100 min | 32 | __ |
| ZCT41-02B | 10A,15A | 30 | 18 | 50 | 45 | __ | 300 min | 20 | __ |
| ZCT22-05B | 10A,15A | 28 | 15 | 28 | 20 | 30 | 45 min | 25 | 47K |
OUTLINGE
ZCT61-02

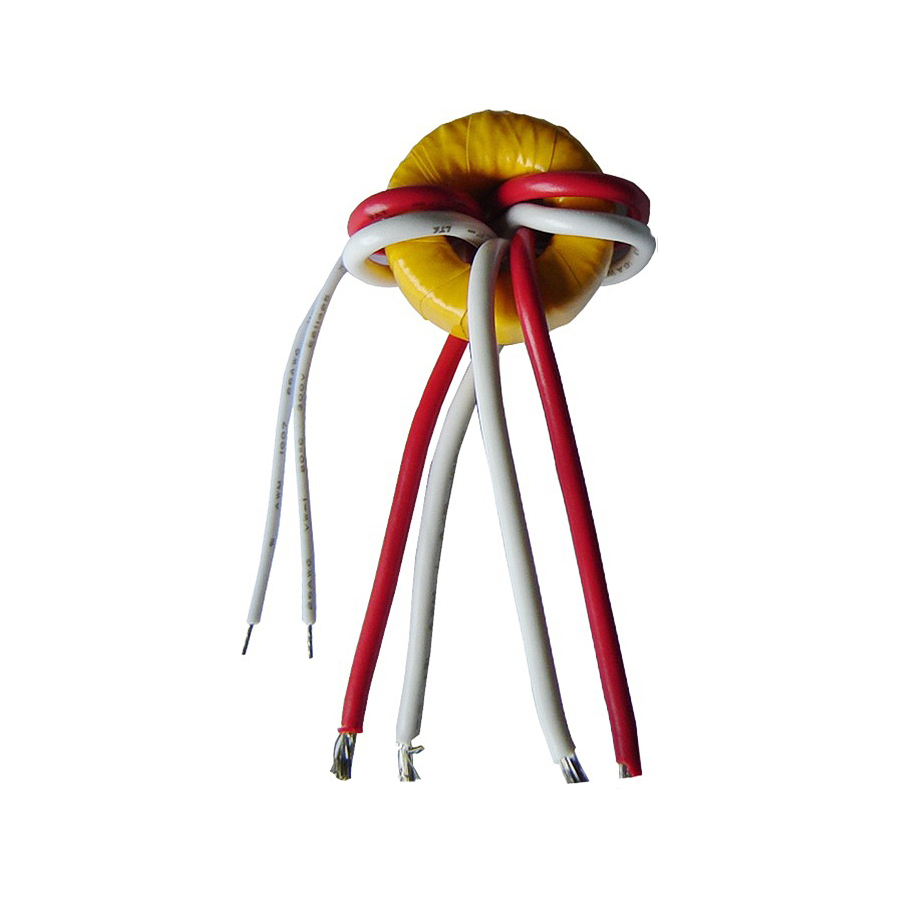

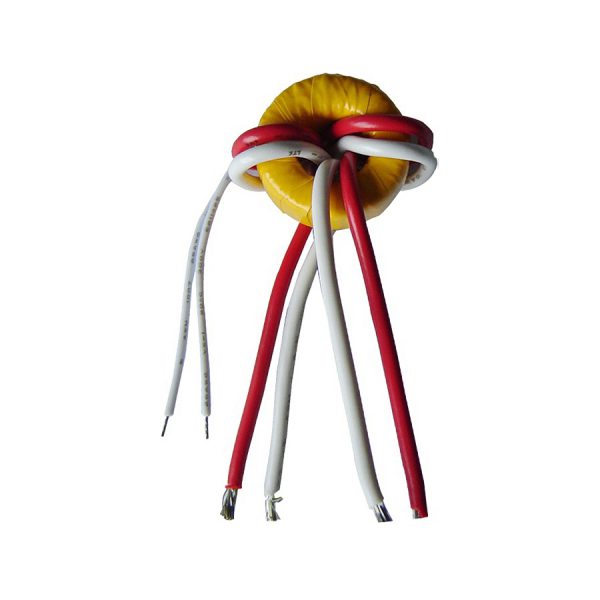

ZCT41-02B
ZCT22-05B
TEST CIRCUITRY
APPLICATIONS
*Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)
*Electrical water heater
