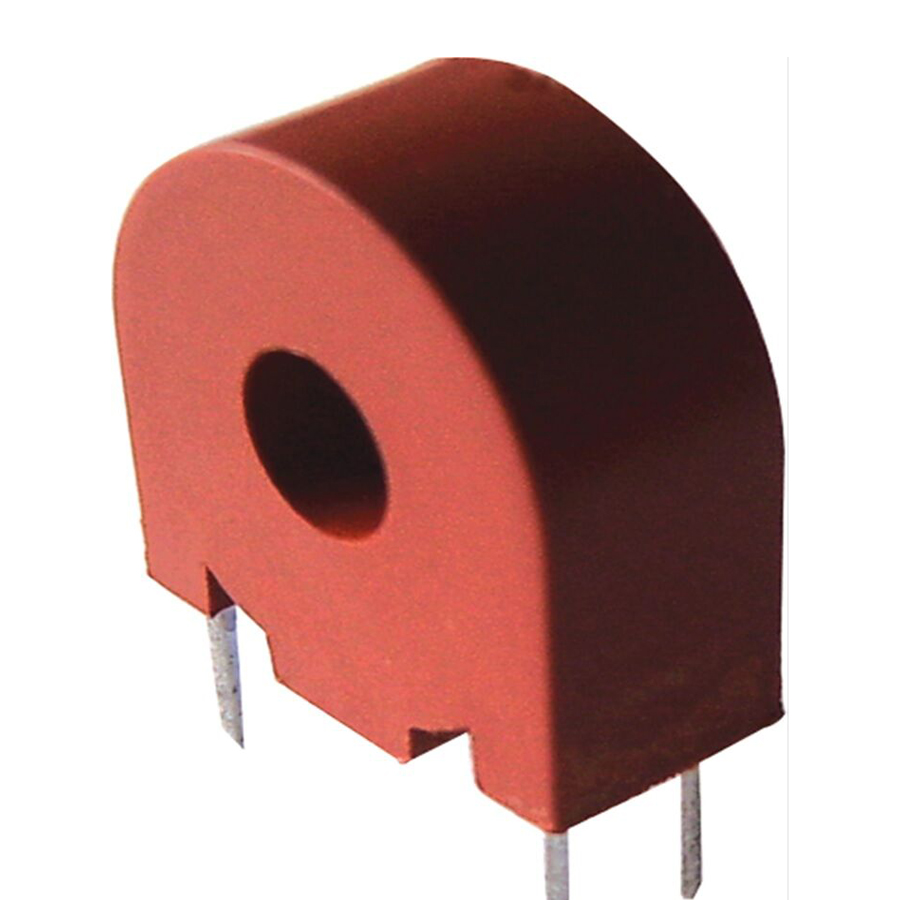

ZCT32

Description

FEATURES:

*High sensitivity
*Steady and reliable output voltage
*PCB mounting
*A variety configuration and output characteristics

TECHNICAL SPECIFICATIONS

Series No.Outline Dimensions(mm)Rated Current(A) Output Volatge

Vo(mv)
Test Conditions

Iin(mA)      RL ( Ω )
Vo(mv)Iin(mA)R L ( Ω )
ZCT31306.5~7.511.251000
ZCT3230W1:60~70
W2:10~18
30__
ZCT3330,5040020__
ZCT34306.3~6.825200
ZCT35303.0~3.420150
ZCT36305.1~5.720150
ZCT3730,5017min251000
ZCT3850,60,756.0~6.522.5270

MATERIAL SPECIFICATIONS

Name Materials
CoreNi Permalloy,Nanocrystalline alloy80%
Core casePBT1320 E221630
Winding2-UEN Φ0.08mm Φ0.1 E164502
Shields Magnetic iron
FillingEpoxy resin 9001A1B E105888
Outer casePBT1320 E221630
PinAg-plated Cu-pin

TEST CIRCUITRY

APPLICATIONS

*Residual current circuit breaker
*Earth leakage protection switch
*Leakage circuit protection breaker
*Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)
