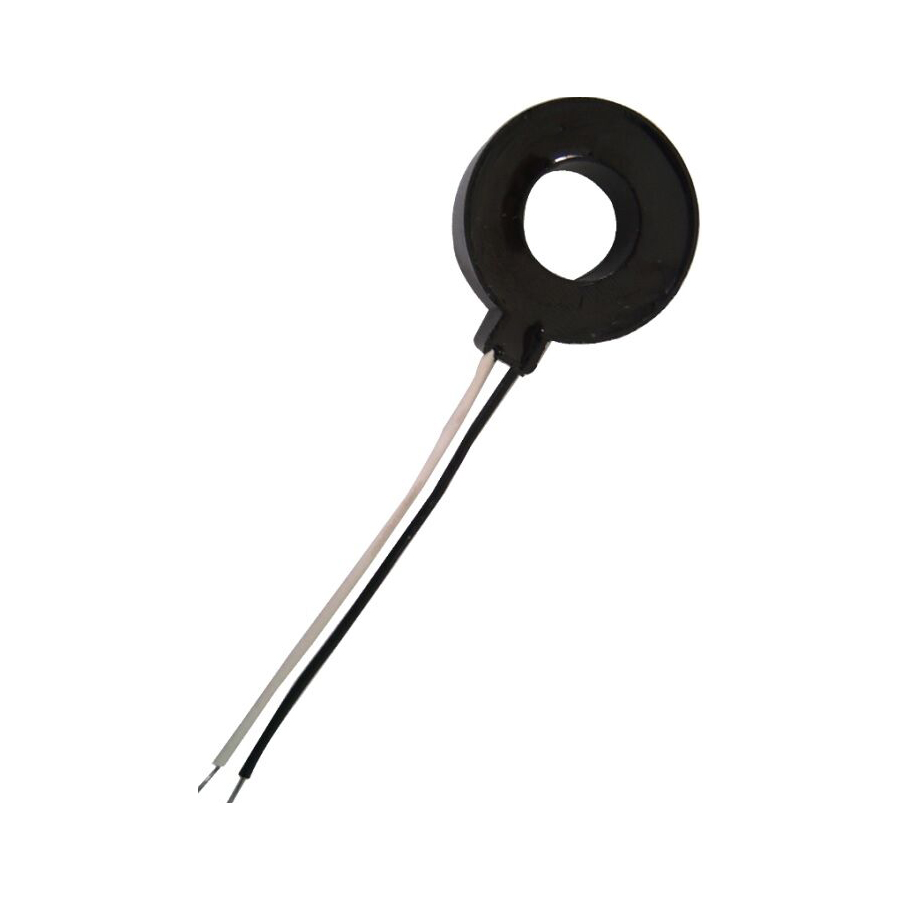

ZCT24

Description

FEATURES:

*High sensitivity
*Close to zero load shift and zero phase shift
*Excellent balance characteristics
*Perfect temperature stability
*Small change for output voltage after passing the heavy current IDC
*A variety of configuration and output characteristics

TECHNICAL SPECIFICATIONS

Series No.Rated Current (A)Outline Standard sizes(mm)Output VoltageTest Conditions
ABCDEFGVo(mv)I in (mA)R L (Ω)
ZCT2130165.96.518.55.745±34±13.5~4.051000
ZCT2230,50219.57.323.56.145±34±117min251000
ZCT2350, 60, 75, 1002612.41029.85.955±34±16.0~6.522.5270
ZCT24100, 1253015.51032.26.155±34±16.0~6.522.5270
ZCT253019.57.27.822.26.145±34±18.0~9.422.5250
ZCT2630176.87.819.56.145±34±16.0~6.522.5270

CONSTRUCTION

MATERIAL SPECIFICATIONS

NameMaterials
Core( 1J85 ) 80%Ni Permalloy
Core casePBT 1320 E221630
Winding2-UEN φ0.08mm E164502
ShieldsMagnetic iron
FillingEpoxy resin 9001A/B E105888
Outer casePBT 1320 E221630
Lead wirePVC insulated wire 1007 #24AWG E186019



TEST CIRCUITRY

APPLICATIONS

*Residual current circuit breaker
*Earth leakage protection switch
*Leakage circuit protection breaker
*Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)
